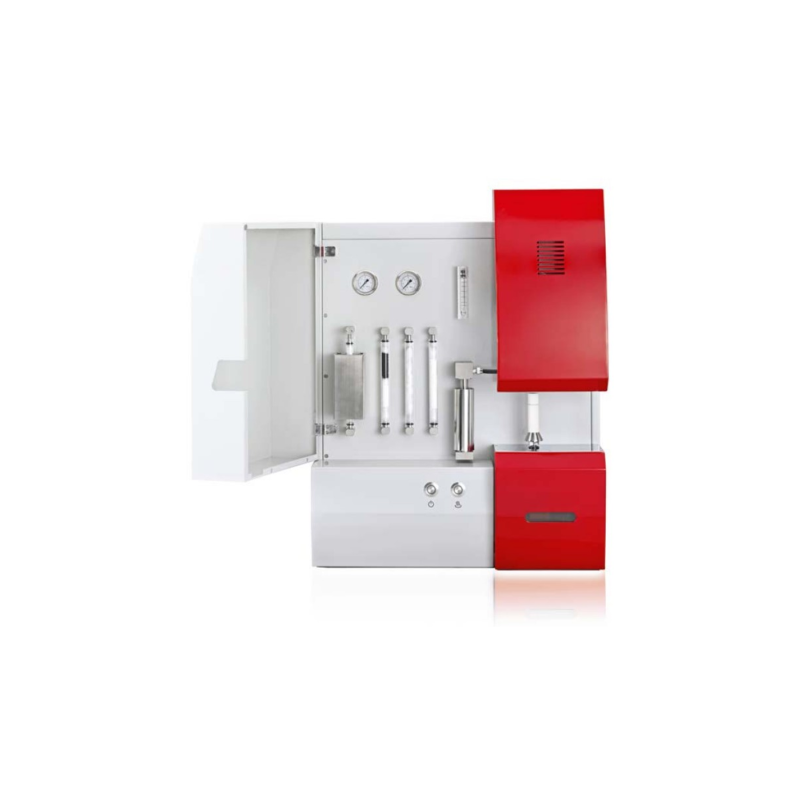

Carbon and sulfur analyzer, Combustion Master CS

NCS Testing Technology (Germany)

Description

The Combustion Master CS carbon and sulfur analyzer is designed to determine the amount of carbon and sulfur in various metals and alloys. This analytical device includes:
  • Fully PC-controlled induction furnace
  • Up to 4 individual infrared detectors for analysis of low and high element concentrations
  • Gas supply system
  • Automatic dust removal system
  • Software
Learn more

Technical Specifications

Sensitivity / accuracy Carbon 0.1 ppm / ±0.5 ppm; Sulfur 0.1 ppm / ±0.8 ppm
Furnace type Induction furnace
Control External PC
Power / frequency / temperature Power 2.2 kVA, 19.5 MHz, 2200°C
Determination method Infrared absorption in solid state, up to 4 independent IR detectors
Sample weight / Analysis time from 500 mg to 1 g / 50 seconds
Reagents Anhydrous magnesium perchlorate, sodium hydroxide, copper oxide
Gas connections Oxygen 3.0, 2 atm; compressed air 6 bar (oil-free)
Power supply 230 V (±10%), 50/60 Hz, 16 A, 3.0 kVA max.
Dimensions and weight W, H, D: 670 mm, 870 mm, 800 mm; weight: 130 kg
Additional PC and monitor (included), laboratory balance 0.0001 g
