Easydur (Italy)
Electromechanical fatigue testing machine

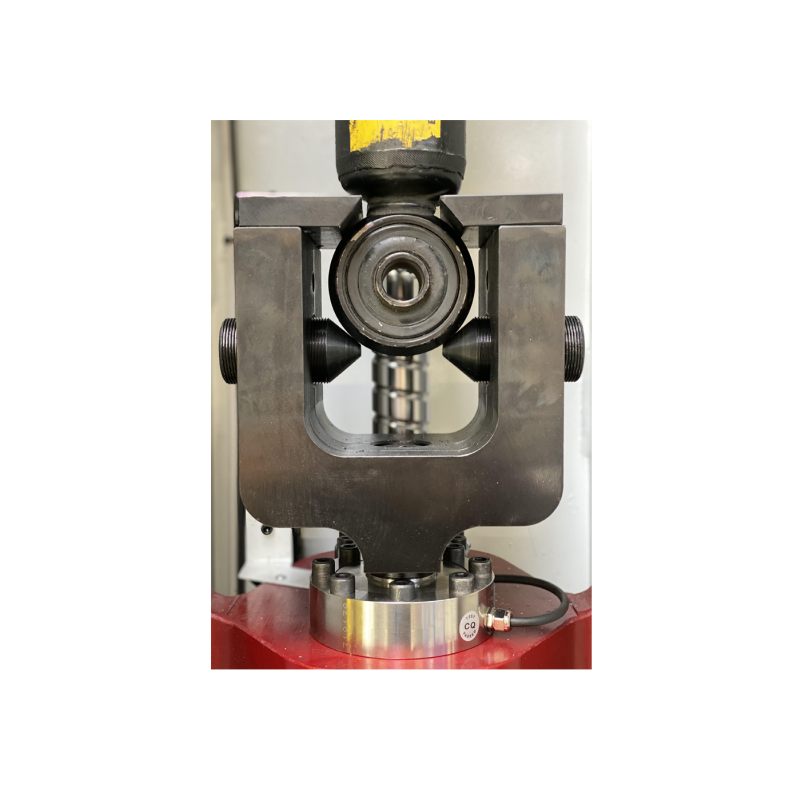

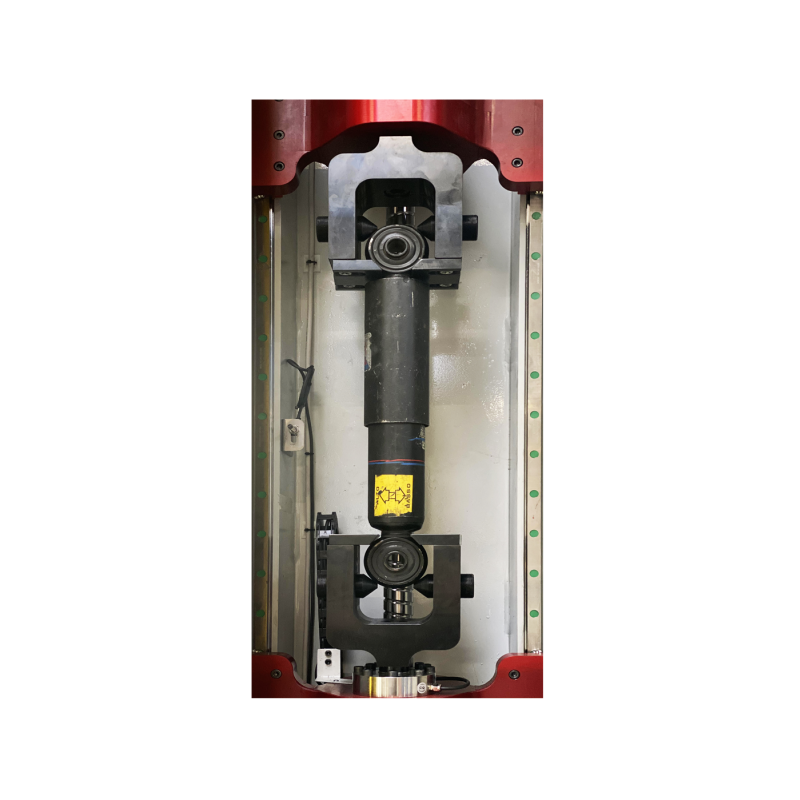

FAT – Shock Absorber is an electromechanical fatigue testing machine equipped with a brushless motor and ball screws, designed to measure tensile and compressive forces. It is ideally suited for testing shock absorbers.
The machine can operate at various tilt angles thanks to a rotating chassis, allowing movement from vertical to horizontal position with automatic adjustment of the working stroke from 0 to 1000 mm.
| Rotation | ±90° (manual or automatic on request) |
| Load | 25 kN |
| Minimum division | 0.25 N |
| Speed | up to 500 mm/s |
| Stroke | 0 – 1000 mm |
| Resolution | 0.001 mm |
| Shock absorber motion | sinusoidal |
| Programmable parameters | Amplitude, Frequency, Number of cycles |
Our specialists will help you choose the optimal configuration and prepare a commercial offer
Contact us
