Field torsiometer of the TMP series

Easydur (Italy)

Gallery

Description

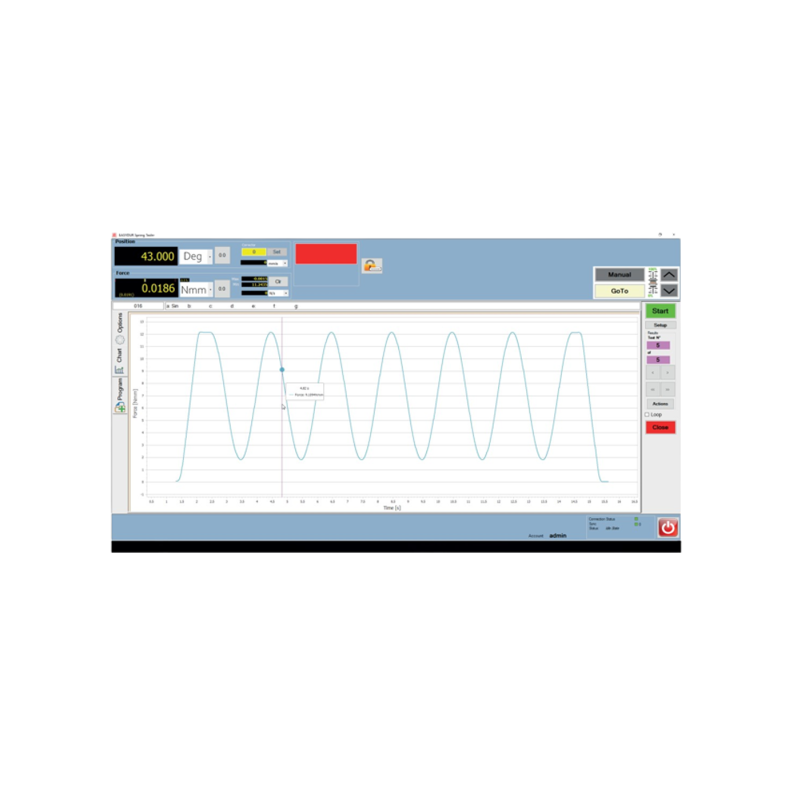

This torsion tester is equipped with a touch screen computer to perform the test procedure. Both tabletop and floor models are available. The device is easy to use — once the test method is created, you can simply press the “Start” button.

The machine can be equipped with one, two, or three load cells, always ready for use, inserted in the turret and selected directly through the program.

Ease of programming
The machine can operate in three modes: manual – semi-automatic – automatic. Programming is done through the multilingual “EasyQS” software developed by Easydur Company and based on Windows 10.

Learn more

Technical Specifications

Nominal torque range	100, 200, 500, 1000, 2000, 5000, 10000, 20000, 50000, 80000 N·m.
Minimum division	0.003; 0.006; 0.015; 0.03; 0.06; 0.15; 0.31; 0.61; 1.56; 2.5 N·m.
Maximum measuring diameter	Standard 200 mm or 500 mm.
Distance between tools	Standard 200 mm or 500 mm.
Rotation capability	Infinite.
Minimum angular division	0.1°.
Power supply	230/110 V or 400 V.
